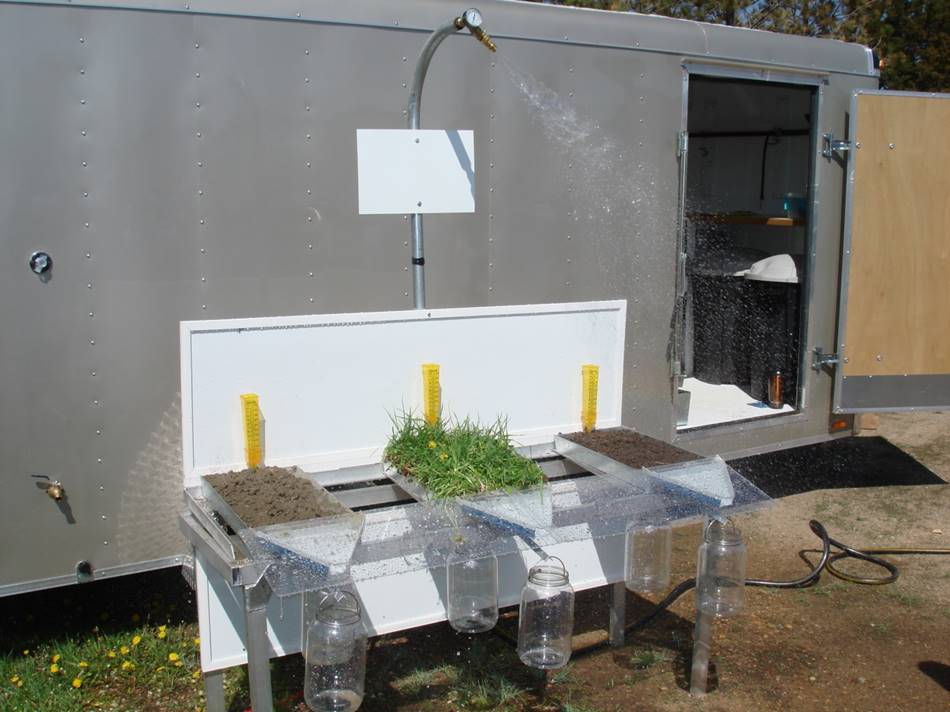

3-pan Rainfall Simulator

Our full-size simulator provides a detailed demonstration of soil health concepts. Consider adding display panels for visual impact and a water containment system for indoor use.

3pan

3-pan Rainfall Simulator

Specifications:

  • Aluminum table frame
  • Tower
  • Nozzle
  • Oscillating motor with linkage
  • Pressure regulator
  • Metal soil trays (3)
  • 75’ 3/4 hose
  • Pressure gauge
  • Jars and hangers (3)
  • Funnels/covers (3)
  • Rain gauge
  • Labor, cords, connections

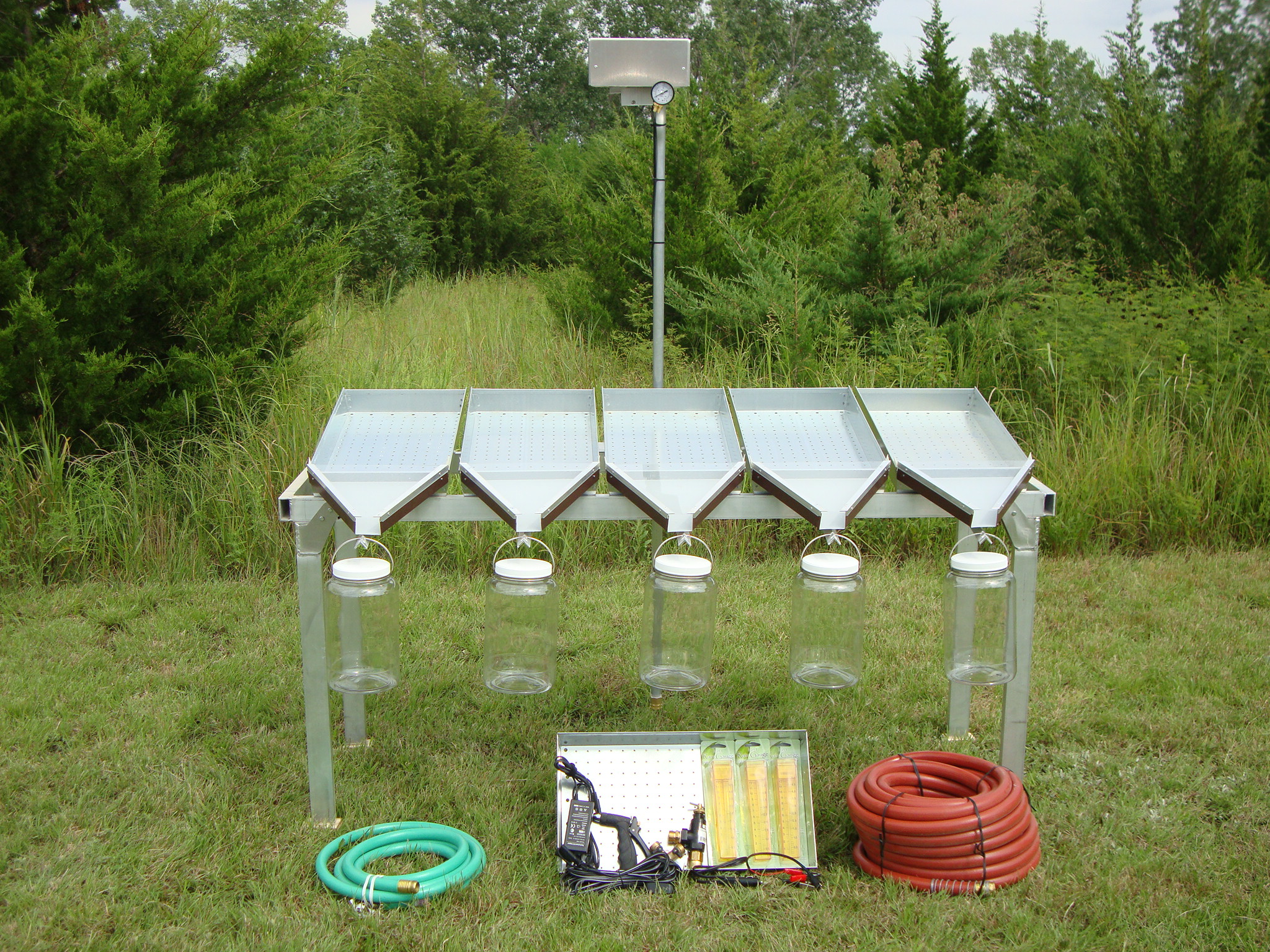

5-pan Rainfall Simulator

032

5 pan rainfall simulator

Our full-size simulator provides a detailed demonstration of soil health concepts. Consider adding display panels for visual impact and a water containment system for indoor use. IMG: 032.jpg

Specifications:

  • Aluminum table frame
  • Tower
  • Nozzle
  • Oscillating motor with linkage
  • Pressure regulator
  • Metal soil trays (6, includes one extra)
  • 75’ 3/4 hose
  • Pressure gauge
  • Jars and hangers (5)
  • Funnels/covers (5)
  • Rain gauge
  • Labor, cords, connections

Travel-Lite Simulator

20141021_165519

Travel-Lite Simulator

This is a folding rainfall simulator complete with infiltration demonstration. It is designed for packaged portability with the use of two carrying cases outfitted with wheels and handles. The table breaks down for transport and the two cases can be easily slipped into a pickup, van or car. It has been designed to meet airline transport size and weight standards. The unit consists of the basic unit (folding table), infiltration demonstration, folding white display boards, hose, pressure regulator, rain gauges, shut off valve, clean up nozzle and 5 soil pans.

Specifications:

  • Infiltration demonstration
  • Folding table
  • Folding white display boards (upper only)
  • Hose
  • Pressure regulator
  • Rain gauges
  • Shut off valve
  • Cleanup nozzle
  • Soil pans (5)

Expo Rainfall Simulator

This tabletop display is excellent for desktop, classrooms and small meeting areas.

Original Expo

  Expo Rainfall Simulator

Specifications:

  • Stainless steel soil cutter and containment screen
  • Stand and water reservoir
  • Infiltration and runoff catchment basin

Jumbo Expo Rainfall Simulator

Large and Original Expo Rainfall Simulators

 Original and Jumbo Expo Rainfall Simulators

This Jumbo tabletop display is designed to accommodate grasses and growing cover crops. The extended height and size gives room for taller vegetation and deeper root zones.

Specifications:

  • 6″x9″ stainless steel soil cutter and containment screen (Base pan 10″x12 3/4″ x 4″)
  • Stand and water reservoir
  • Infiltration and runoff catchment basin
  • Approximate height 24”

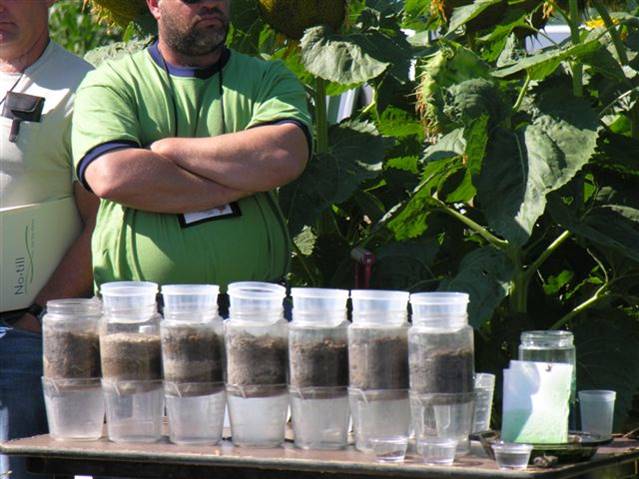

Soil Quality and Water Movement Simulator

This presentation shows how water moves through the soil, highlighting the effect of soil quality, structure and aggregation on infiltration rates. Effectively demonstrate the difference and importance of capillary and gravity flow in the soil. This is a high-impact companion to the rainfall simulator.

Watermove

Soil Quality and Water Movement Demo
Soil Quality and Water Movement Simulator

Specifications:

    • Soil water movement displays (6)
    • Additional jar to hold glass beads
    • Slake demonstration with two one-gallon jars with slake baskets
    • Food coloring
    • Jar of glass beads
    • 9×11 acrylic frame
    • Paper towels
    • Rectangular tub
    • Catchment basins (6)
    • Drip containers (6)
      4-cup measuring cups (4)

Wind Erosion Simulator

Wind Erosion Simulator (with Power Unit)
Show how wind erosion occurs with differing soil aggregation or cover managements. Includes direct wind manifold, catch hood, catch papers and hood clips, and power unit (high-velocity shop vacuum).

Wind Erosion Simulator

wnderosbroch2

Specifications:

  • Direct wind manifold
  • Catch hood
  • Catch papers and hood clips (4)
  • Power unit (delivers 10 to 50mph)
  • Extension vacuum hose
  • Folding table
  • Soil pan and liner
  • Ribbon stand
  • White cotton filter
